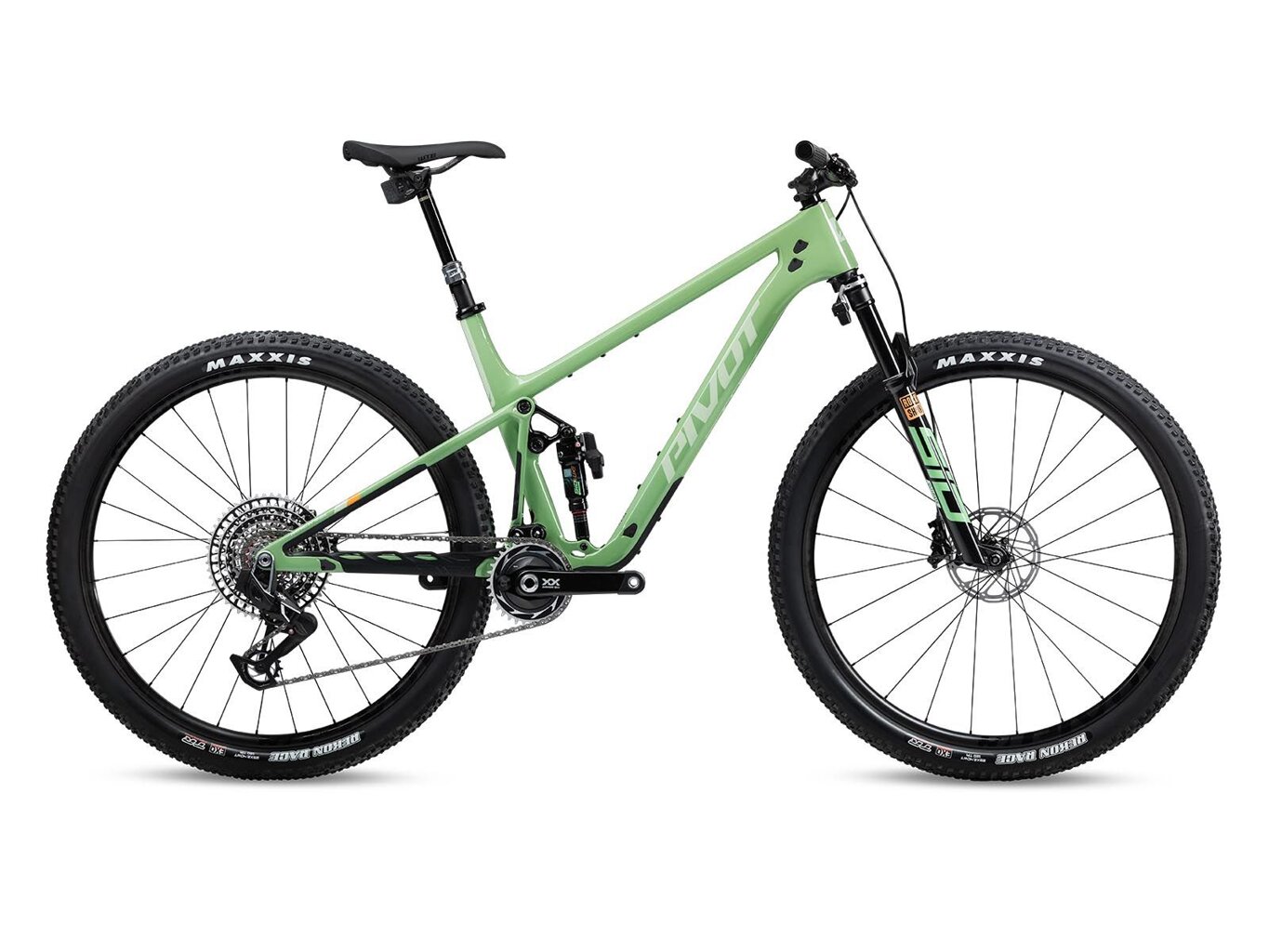

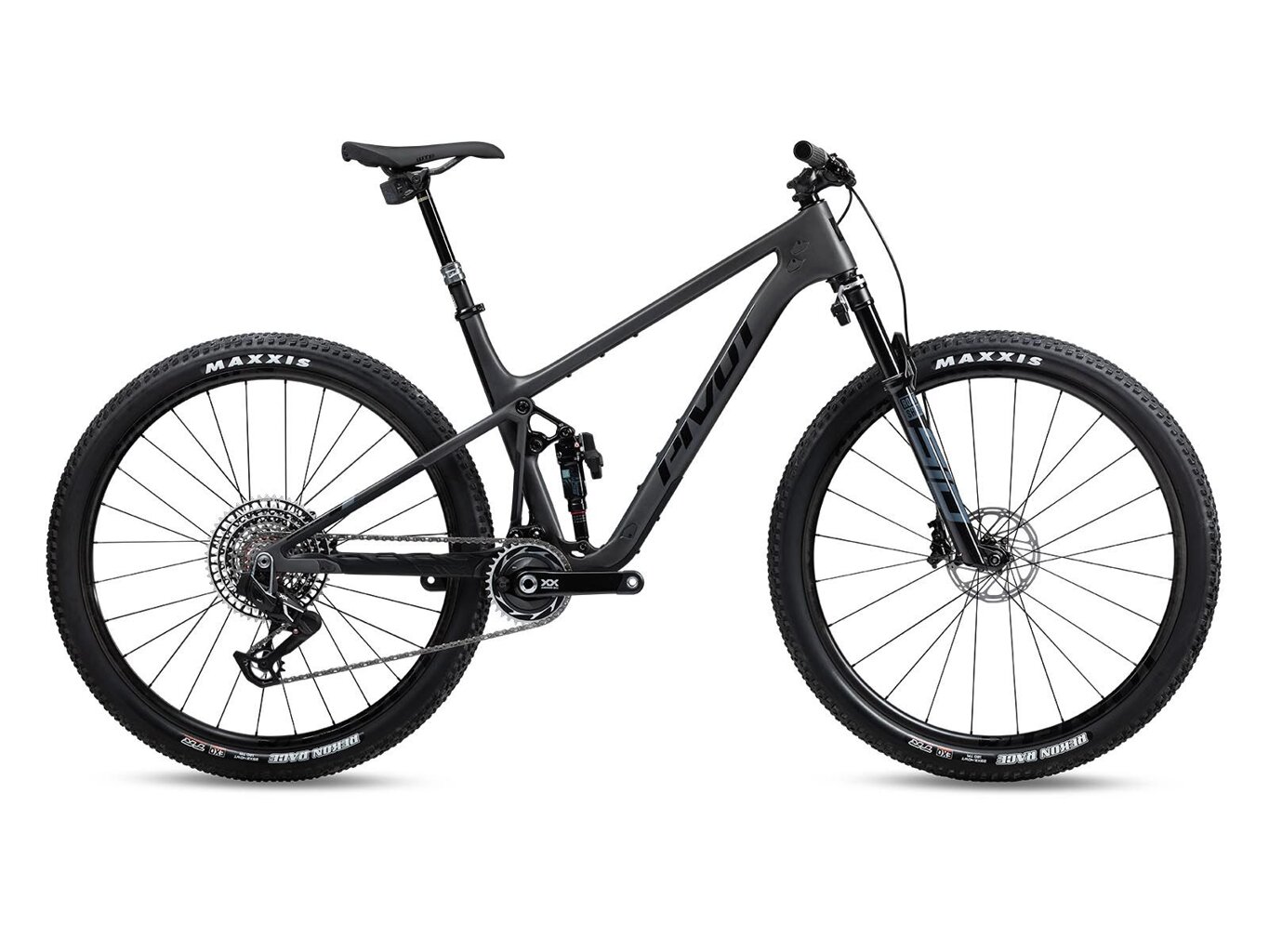

Pivot Mach 4SL

Racing full suspension XCO, XCM special.
_________

-Custom carbon material.
-Handmade frame in positive form.
-DW-link suspension with vertical shock mount. Vertical shock mount in this case provides higher lateral stiffness, a better distributed center of gravity, and room for perches.
-All sizes can accommodate a bidon inside the frame. M-XL sizes can accommodate two bidons.
-Design stiffness tuned for each size separately. Therefore, the XS size offers the same performance for its model rider as the XL size does for its model rider. Pivot works with each design stiffness relative to size separately.
The -FLIP-CHIP allows a simple and quick change of the rear structure stroke.
-With WORLD CUP (WC) specifications of 95mm or 103mm of travel.
-For TEAM, PRO, RIDE specifications 106mm or 115mm of travel.
-Fox suspension tuned through close collaboration of Pivot-Fox specifically for the Mach 4SL and its character.
-Tire clearance up to 29" x 2.4".
-All cable routing through the inside of the frames, noiseless and routed through decent "cable-ports".
-Option to mount the tool dock under the BB.

-Seatpost diameter 31,6mm.
-XS - 240mm, S - 280mm, M - 300mm, L - 340mm, XL - 390mm
-Guidance to control the seatpost - only through the inside of the frame.
-Compatible with all BOOST cranks.
-Centre 92mm press fit.
-Back axle Boost 148mm x 12mm.
-Maximum number of teeth on chain ring - 36z.
-Chain guide can be mounted on the frame.
-Brake disc size - 160mm or 180mm with post mount adapter.
-Frame is NOT compatible with spring shocks.
-Shifter mounting - UDH.

Weight:
Size. S - without shock: 1660g
size: -6.5 mm - shock absorber. S - with Fox DPS shock absorber: 1930g
sized. S - complete bike XX WC specification: under 10,4kg

GEOMETRY:
